“bodo”

idea for an optimal double mech. seal

(face-to-face, cartridge execution near bearing)

bodo_messeAdvantages of the „bodo“ construction:

The stuffing box room is free for other proposals (see C)

Easy pressure and temperature measurement of the product (see D)

Cooling or heating ( see G and H)

Flushing (see E)

Foto of the ACHEMA - exhibition for chemical engineering and process industry in Frankfurt. We exhibited the “bodo”  operating at 3000 r.p.m, 10 bar, and a shaft deflection of max. 2,5 mm. No leakage ! after several hours running time. The pressure of 10 bar was produced with our SPH2300 by hand.












G1:

bodo_patrone

Foto of the ”bodo” 043in KSB – CPK-pump


which was running 4 times longer against chemical sludge than 12 other mechanical seals of different manufactures at BASF in Ludwigshafen(  without flushing)

bodo_b

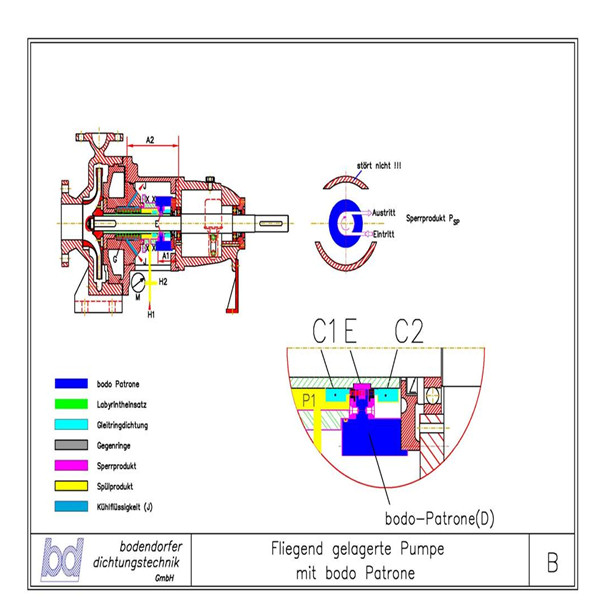

Flying shaft pump with “bodo”

blue:         bodo – catridge casing
green:    Labyrinth-input
turquoise:    mechanical seal in worldwide standard size  (C1 and C2)
gray:        stationary seal ring
pink:        buffer fluid ( very strong buffer fluid pumping-device)
yellow:    flushing product
light blue:     cooling liquid

Proposal for the seal execution:

  • Bellow seal without O-rings
  • Measures according to DIN
  • Seal –rings: stationary tungsten carbide without O-ring, running: silicium carbide

bodo_c bodo_d bodo_e bodo_f

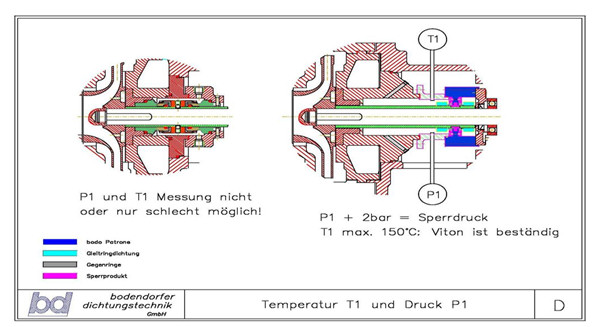

Showing the free room due to „bodo“ situation near bearing. Temperature and pressure dates can be easily shown due to the free room.
P1:  The pressure in front of the “bodo” is normally calculated by the pump manufacture.

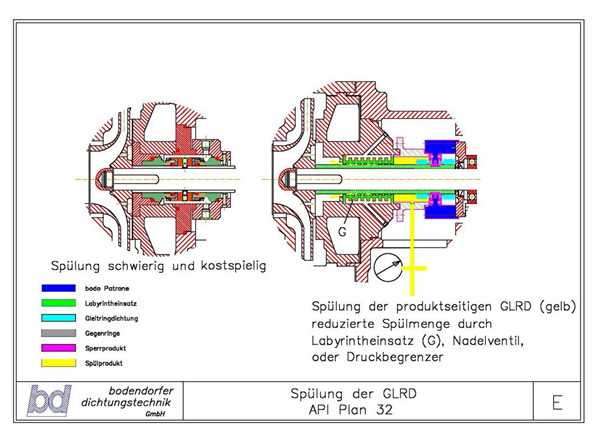

 At impellers with back-vanes P1= about 50 -70 % of the discharge pressure, without  vanes about 100% with back holes about 20%.		 Flushing of the single seal on the product – side ( yellow ).
With labyrinth -sleeve(G) the flushing capacity can be reduced to about 50%.

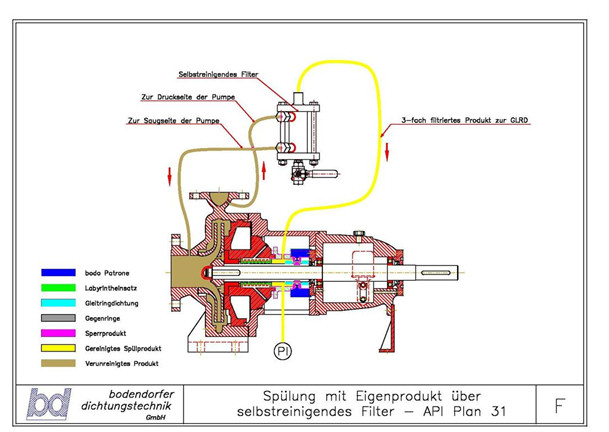

Flushing with own pump - product through self- cleaning filter ZF.
Dirt flows back to the suction.
bodo_g bodo_h bodo_i bodo_j

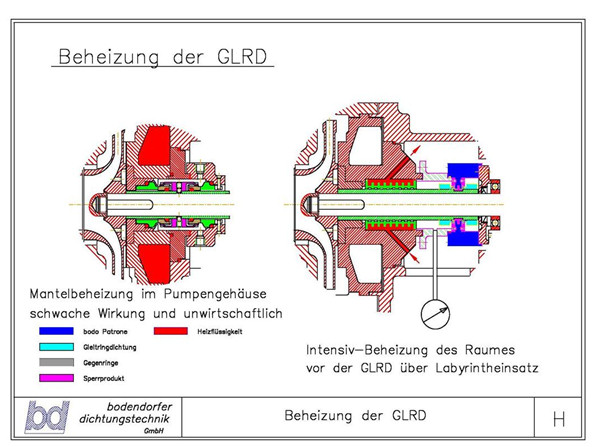

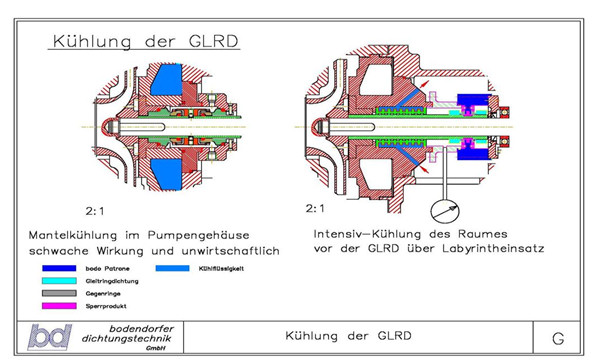

Intensive cooling of the „bodo” Intensive heating of the “bodo”

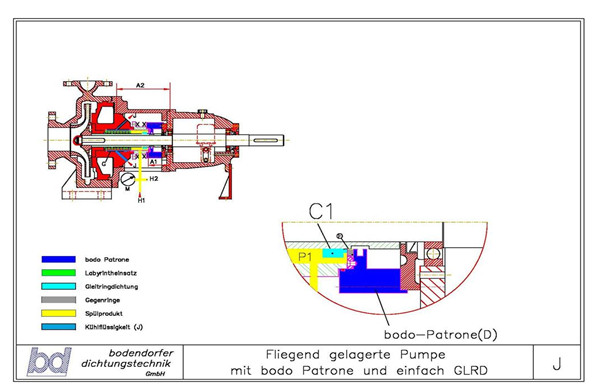

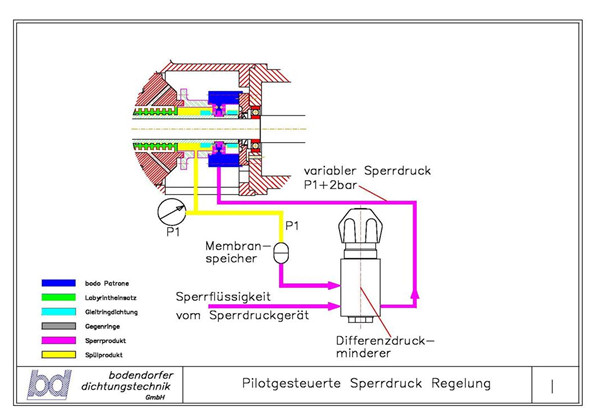

Both with the pump chambers is much worse.		 Automatic buffer fluid 2-4 bar above buffer fluid by difference regulator First a single mechanical seal can be tested, and if necessary with a second atmospheric single- seal, changed to a double - seal-without having to change something.
